About favicons

The buggy editor's source code includes an unusual route that responds to the request by sending back a file called favicon.png. This tech note explains what it's doing and why it's there.

The favicon.png file in your editor is a relatively small PNG image that contains a yellow-and-black square:

the yellow-and-black quartered square from the buggy editor

What is a favicon?

A favicon is a "favourite icon" or shortcut icon that isn't itself displayed within the web page. Instead it's a small icon that the browser can use to differentiate this site (or, more accurately, this webpage) from others. Your browser may use it to put on the tab, or (if you bookmark the URL) in the bookmark list.

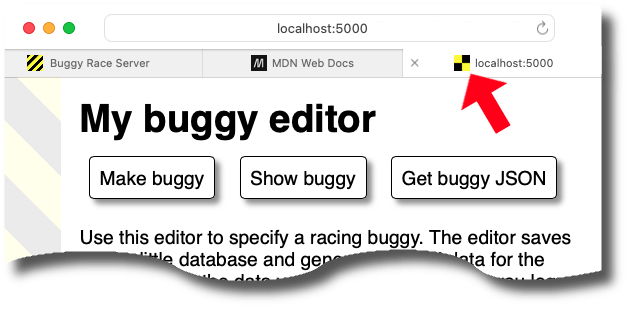

example of favicon on browser tabs

Why requests for favicons are slightly unusual

When you're developing your buggy editor, requests are usually triggered by one of two things:

  • you entered a URL or clicked a link to send a request
  • a page you loaded required additional resources (such as CSS stylesheets or images) whose URLs are explicitly stated in the HTML (often relative to the domain and route of the page)

But favicons are different because they can be implicit: that is, when you load a resource from a domain, your browser might make a request for a favicon from the root location (so,/favicon.ico). This behaviour is browser-dependant, but the key thing is that most browsers will make this request even though neither you nor the resource it loaded explicitly asked for it.

This behaviour can be overridden if the resource the browser loaded is an HTML page that explicitly nominates a different URL to use. You can see this happening in the buggy editor because, in templates/base.html there's a link tag that tells the browser what URL to use to get the favicon:

    <link rel="icon" href="/favicon.png" />

This line is in the HTML document's <head>, where you can also find a <link> tag for the CSS stylesheet. So in this case, it's just like any other resource that's explicitly included in the HTML. The subtle difference is that if you don't put a <link rel="stylesheet"...> tag in your HTML then your browser won't send a speculative request to see if it can find one. But if you don't put a <link rel="icon"...> tag in, most browsers will fire off a request for /favicon.ico anyway.

The buggy editor's /favicon.png route

This is the route that you can find in your buggy editor's app.py:

@app.route("/favicon.png")
def send_favicon():
    return send_file(
        "static/favicon.png",
        mimetype='image/png',
        max_age=60*60*24
    )

Unlike the other routes, this isn't using a template, and it's not reading the database (which is what the /json route does). Instead, it's simply sending back a static file. There's something odd here: that file is in the static directory, which Flask already knows how to handle — Flask doesn't need to find a route in your Python for static files. You know this because your app is serving the stylesheet app.css even though there's no route in app.py for it (confirm this for yourself by going to your browser and hitting http://localhost:5000/static/app.css).

The reason we've included this /favicon.png route is so that your buggy editor can add that max_age header to its response. This is effectively telling the browser "this icon is good to reuse for the next 24 hours" (the value of max_age is a number of seconds, so 60×60×24 is one day). It's telling the browser to cache the icon.

What would happen without the max_age? Well, because we encourage you to run your buggy editor in Flask's development mode, everything is usually being sent out with no caching. (That's sometimes called a "zero time-to-live" (TTL) policy). So without the favicon's max_age=86400, you'd see a GET request hitting your buggy editor every time you request any resource from it. This isn't a big problem, but if you're new to web dev we think it's unhelpful for your webserver's activity to be reporting multiple requests for something you didn't ask for (and which isn't changing anyway). By dropping the favicon link into the base template, putting its route into app.py, and caching its response, we've made what's going on less mysterious.

Incidentally, because "/favicon.png" is identifying a route here, it doesn't need to look like a filename — that is, it would still work if you changed the route not to have the .png extension (provided you also removed that .png from the URL in the <link rel="icon"...>'s href attribute, because that's the URL that your browser will be requesting). However, in this case, keeping the .png in the route is probably the least confusing way of doing it, because the route really is only serving that image file.

When caching is not your friend

So why isn't there also a route for the app.css stylesheet? That is handled as static content (at static/app.css) and there's no max age/TTL being set on that.

The difference is that, unlike the favicon, we anticipate you making multiple changes to your CSS stylesheet as you're developing your buggy editor. It turns out that caching is great in production — you want the same files to be reused without the overhead of waiting to download a resource you've already got and that hasn't changed. But this is exactly what you don't want when you are changing it between requests... which is what you're doing as a developer.

It can be very confusing (and frustrating) when the changes you are making to your HTML or CSS files are not appearing in the browser when you refresh the page. Almost certainly this is going to bite you at some time during the project! For more information about this, see the tech note about cache-busting the CSS.

Of course, you can change the favicon that your buggy editor uses! If you do so, do you need to do anything before it will appear in your browser? To understand more about how the webserver and the browser work this out, have a look at HTTP status code 304 and conditional requests (especially the If-Modified-Since header).

The .png format versus the .ico format

You may have noticed that your buggy editor's favicon is favicon.png, which is not the same as the default favicon.ico that the browser would otherwise ask for.

By the way, you can discover this default for yourself by commenting out the favicon <link> (e.g., use <!-- -->) in your buggy editor's base.html template. Then watch your buggy editor's activity log when you load pages... you'll probably see 404 errors on a request for /favicon.ico that you didn't ask for. (This behaviour does depend a little bit on which browser you're using, but this is default for most).

We've used a PNG format for the buggy editor because that's a common format for image files on the web, and if you try to open or view favicon.png, then you'll probably see the yellow and black square image shown above. The ICO format is more specialised and is capable of containing many different sized icons, which — at least to start with — is more complexity than the basic buggy editor needs. You can read more about the ICO format.

Why do browsers assume that the icon is at /favicon.ico?

If you can specify a URL with <link rel="icon"...>, you may wonder why browsers should ever try guess or assume where the icon is. Why don't they only use a URL when the server tells them where to find it? The answer is that browsers may want to apply a favicon to resources that are not HTML pages: for example, a PDF document from a website. Your buggy editor's /json route is another example. So the behaviour of requesting a favicon applies to all resources, whether or not they are HTML pages, and many of those resources are not capable of nominating the URL of an associated icon. Arguably, HTML pages are the special case because, uniquely, they do allow the server to nominate a specific URL for the favicon.

Technically, a mechanism does exist by which a server could nominate a URL to use as an icon regardless of the type of resource. HTTP response headers convey meta-data along with the payload of the resource itself, and a Link header has been proposed. But it was not widely adopted, and the practice of the client assuming /favicon.ico has become mainstream.

Apple devices make similar unsolicited requests for apple-touch-icon.png (if you're testing your buggy editor on a Mac with the Safari browser, you might see these requests appearing in your log).

The history of this behaviour dates back to Microsoft's Internet Explorer 5 web browser in 1999 — so that's where the policy of speculatively requesting /favicon.ico comes from. It's an example of a proprietary behaviour eventually being absorbed into a standard through widespread adoption rather than collaborative design. Icons are somewhat complicated because their use and resolution can vary considerably depending on the client device. The HTML5 specification provides a sizes attribute within the <link> tag, which allows the client (browser) to choose the most suitable one to download.
